Kia Optima Hybrid: Bumper / Front Bumper Components and Components Location

Kia Optima Hybrid (TF HEV) 2016-2020 Service Manual / Body (Interior and Exterior) / Bumper / Front Bumper Components and Components Location

Components(1)

1. Front bumper cover
2. Front bumper upper strip assembly
3. Radiator grill upper cover
4. Front bumper lower stiffner
5. Front bumper rail assembly
6. Front bumper side bracket [LH]
7. Front bumper side bracket [RH]
8. KIA ornamemt

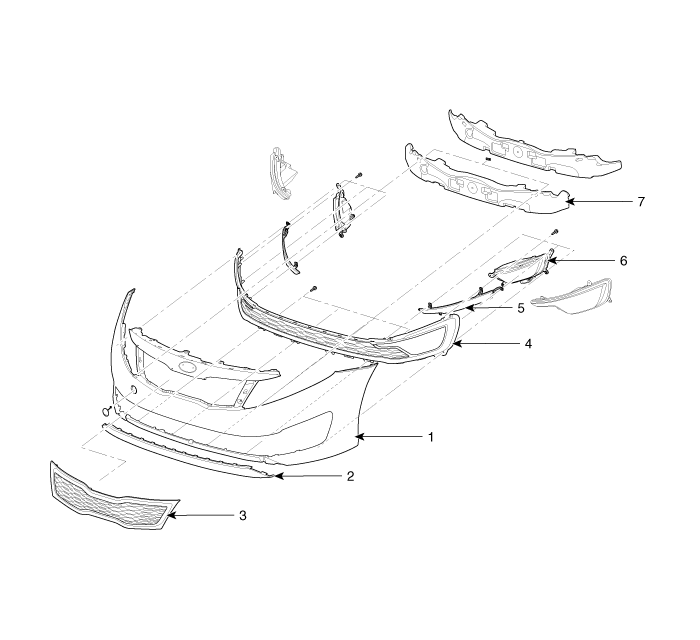

Components(2)

1. Front bumper cover
2. Front bumper lip assembly
3. Radiator grill assembly
4. Front bumper grill assembly
5. Side piece upper
6. Front fog lamp assembly
7. Front bumper energy absorber
