Kia Optima Hybrid: Cruise Control System / Cruise Control Switch Schematic Diagrams

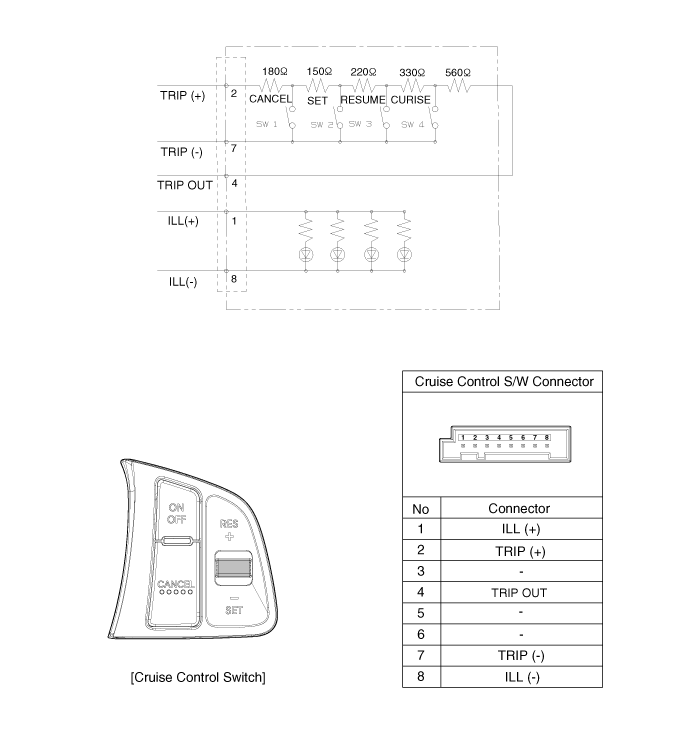

Circuit Diagram

Troubleshooting

Trouble Symptom Charts Trouble Symptom 1 Trouble Symptom 2 Trouble symptomProbable causeRemedyThe set vehicle speed varies greatly upward or downward"Surging" (repeated alternating acceleration and deceleration) ...

Cruise Control Switch Repair procedures

Removal and Installation 1. Disconnect the battery negative terminal. Tightening torque : 4.0 ~ 6.0N.m (0.4 ~ 0.6kgf.m, 3.0 ~ 4.4lb-ft) 2. Remove the driver airbag module. (Refer to the RT group - "Airbag ...
