Component Location |

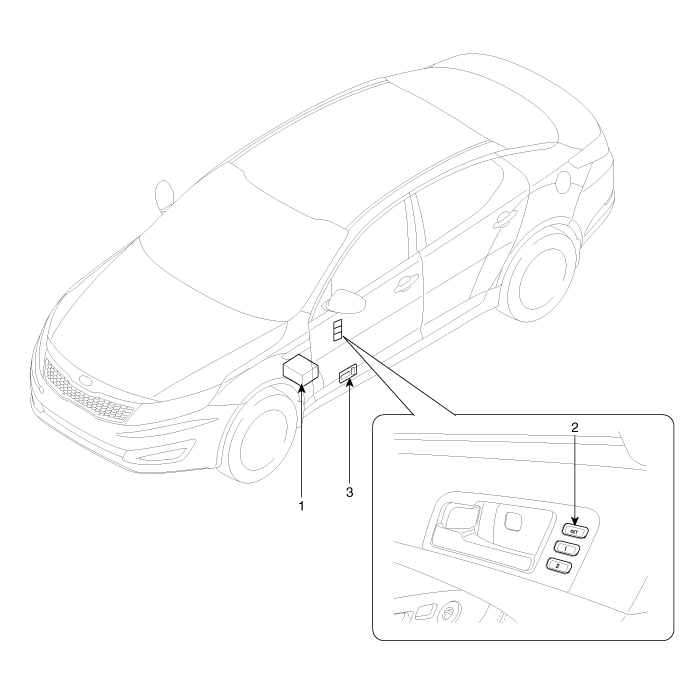

1. Seat Memory Unit (IMS) 2. IMS control switch | 3. IMS driver power seat control |
Specifications IMS Electrical System ItemSpecificationRating voltageDC 12VOperating voltageDC 9V ~ 16VOperating temperature-22°F ~ 176°F (-30°C ~ +80°C)Maintaining temperature-40°F ~ 185°F (-40°C ...
Circuit Diagram Input/Output Specification Connector Pin Lay Out IMS input/output pin information NoSignal NameI/OContentsRemarkA1---A2FR height motor upOFR height motor up outputA3RR height motor upORR ...
Removal and Installation 1. Disconnect the battery negative terminal. Tightening torque : 4.0 ~ 6.0N.m (0.4 ~ 0.6kgf.m, 3.0 ~ 4.4lb-ft) 2. Remove the driver airbag module. (Refer to the RT group - "Airbag module") 3. Remove the steering wheel. (Refer to the ST group - "Steering column and shaft") 4. ...
Removal 1. Release the residual pressure in fuel line (Refer to “Release Residual Pressure in Fuel Line”). 2. Lift the vehicle. 3. Remove the front side cover (A) and rear side cover (B). 4. Disconnect the fuel feed tube hose (A), leveling hose (B) and vapor hose quick-connector C). 5. Remove rear ...
