Kia Optima Hybrid: Seat Belt / Components and Components Location

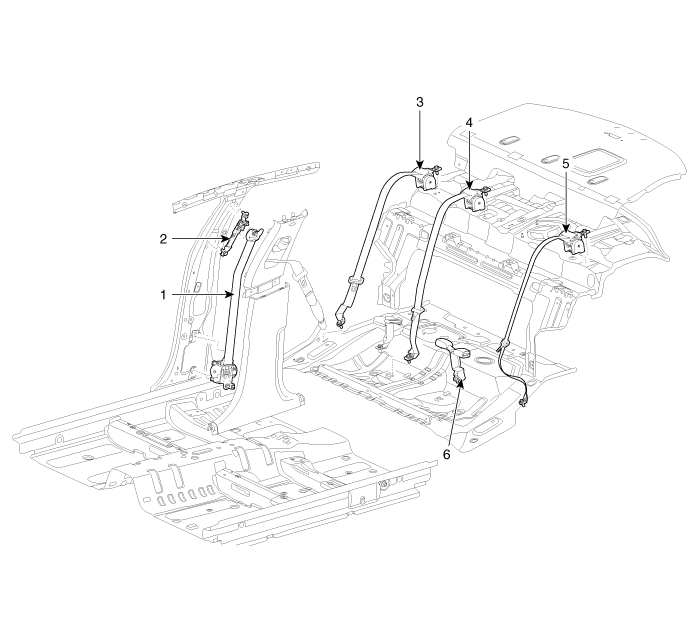

Components

1. Front seat belt
2. Height adjuster
3. Rear seat belt [RH]
4. Rear center seat belt
5. Rear seat belt [LH]
6. Rear seat belt buckle

Seat Belt

...

Front Seat Belt Repair procedures

Replacement Front Seat Belt Replacement     • When installing the belt, make sure not to damage the pretensioner. 1. Remove the following items first : • Front seat assembly (Refer to the ...
