Kia Optima Hybrid: Blower / Climate Control Air Filter Repair procedures

Kia Optima Hybrid (TF HEV) 2016-2020 Service Manual / Heating,Ventilation, Air Conditioning / Blower / Climate Control Air Filter Repair procedures

Replacement

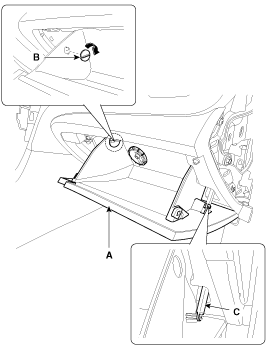

1.	Disconnect the damper (B) from the glove box (A).Remove the glove box lift (C).

2.	Remove the filter cover with pushing the knob.

Replace the air filter (B), install it after making sure of the direction of air filter.

In case of driving in an air-polluted area or rugged terrain, check and replace the air filter as frequently as possible.

4.	Installation is the reverse order of removal.

Climate Control Air Filter Description and Operation

Description This has particle filter which eliminates foreign materials and odor. The particle filter includes odor filter as well as conventional dust filter to ensure comfortable interior environment. ...

Intake Actuator Components and Components Location

Component Location ...
