Kia Optima Hybrid: Blower / Intake Actuator Components and Components Location

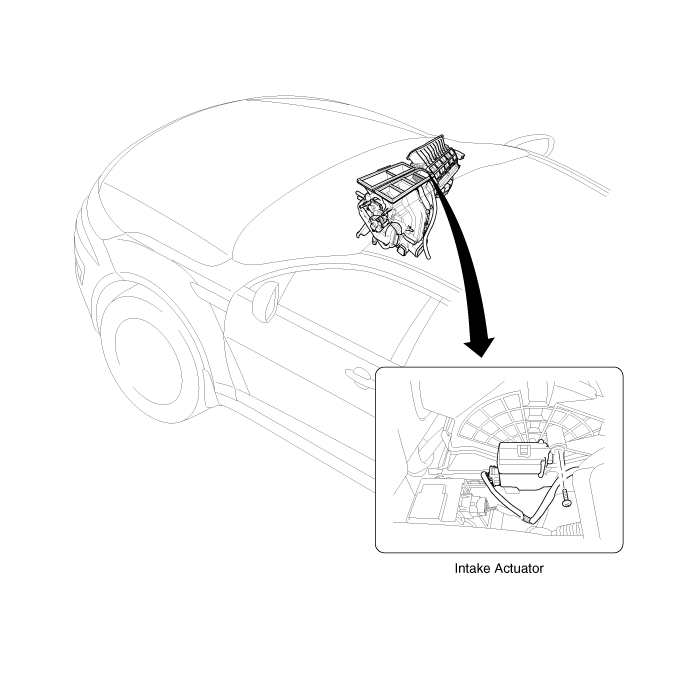

Component Location

Climate Control Air Filter Repair procedures

Replacement 1. Disconnect the damper (B) from the glove box (A).Remove the glove box lift (C). 2. Remove the filter cover with pushing the knob. 3. Replace the air filter (B), install it after making sure ...

Intake Actuator Description and Operation

Description 1. The intake actuator is located at the blower unit. 2. It regulates the intake door by signal from control unit. 3. Pressing the intake selection switch will shift between recirculation and ...

Other information:

Kia Optima Hybrid (TF HEV) 2016-2020 Service Manual: Electric A/C compressor Description and Operation


Description Through the development of electric compressors, fuel efficiency is improved and air conditioner can be implemented when the engine stopped.Operation Principle Compression Part One of the scrolls is fixed, while the other orbits eccen trically without self-rotating, thereby to trap and pump ...

Kia Optima Hybrid (TF HEV) 2016-2020 Service Manual: Rear Parking Assist System Switch Repair procedures


Removal 1. Disconnect the negative (-) battery terminal. 2. Remove the smart junction box cover. 3. Remove the crash pad side switch assembly (A) as shown below picture.     Put on gloves to protect your hands. 4. Remove the PAS switch (A) after disconnecting the connector. Installation 1. ...
