Kia Optima Hybrid: Automatic Transaxle System / Automatic Transaxle Components and Components Location

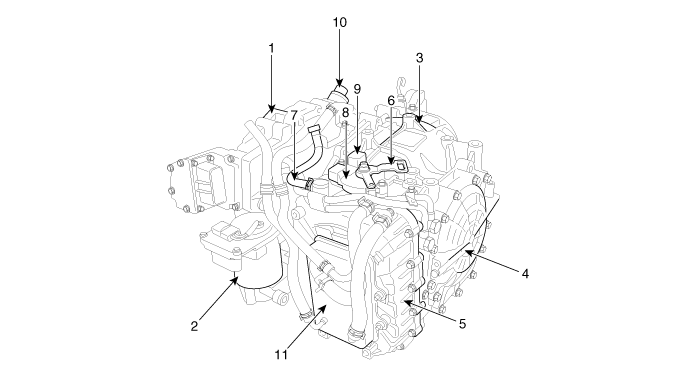

Components

1. Motor assembly
2. Electric oil pump (EOP)
3. Automatic transaxle case
4. Rear cover
5. Valve body cover
6. Manual control lever
7. Air breather hose
8. Inhibitor switch
9. Solenoid valve connector
10. Resolver sensor
11. ATF Warmer
