Kia Optima Hybrid: Automatic Transaxle Control System / 26 Brake Control Solenoid Valve(26/B_VFS) Schematic Diagrams

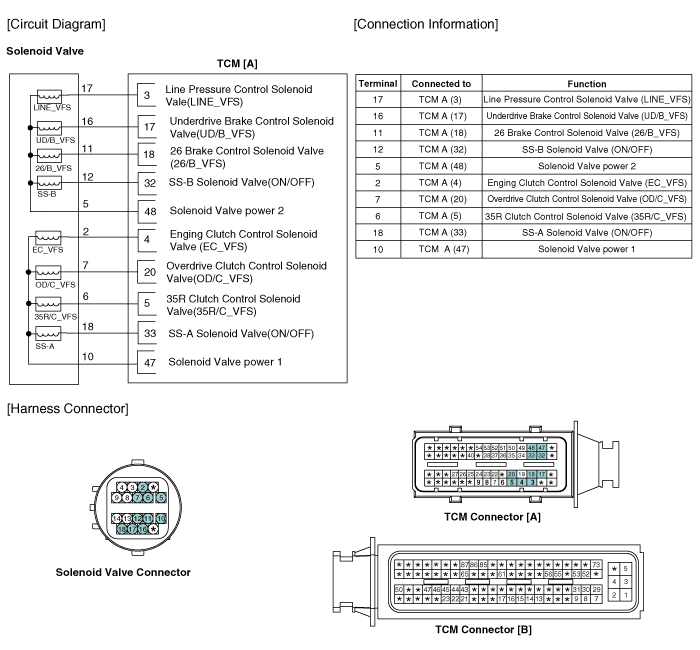

Circuit Diagram

26 Brake Control Solenoid Valve(26/B_VFS) Specifications

Specifications Direct control VFS[26/B] Control type : Normal low type Control Pressure kpa(kgf/cm?, psi)9.81 ~ 500.14(0.1 ~ 5.1, 1.42 ~ 72.54)Current value (mA)50 ~ 850 Internal resistance (?)5.1 ...

26 Brake Control Solenoid Valve(26/B_VFS) Repair procedures

Inspection 1. Turn ignition switch OFF. 2. Remove the air duct (A). Tightening torque: 7.8 ~ 9.8 N.m (0.8 ~ 1.0 kgf.m, 5.8 ~ 7.2 lb-ft) 3. Remove the air cleaner assembly. (1) Disconnect the breather hose ...
