Kia Optima Hybrid: SRSCM / SRS Control Module (SRSCM) Components and Components Location

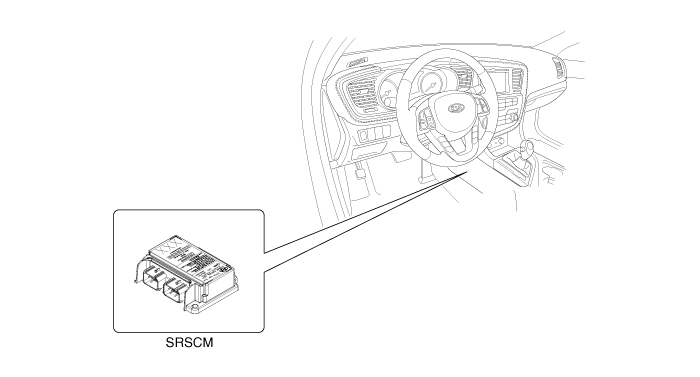

| Components |
SRS Control Module (SRSCM) Description and Operation
Description The primary purpose of the SRSCM (Supplemental Restraints System Control Module) is to discriminate between an event that warrants restraint system deployment and an event that does not. The ...
SRS Control Module (SRSCM) Repair procedures
Removal 1. Remove the ignition key from the vehicle. 2. Disconnect the battery negative cable and wait for at least three minutes before beginning work. 3. Remove the floor console. (Refer to the Body ...
