Kia Optima Hybrid: Fuses And Relays / Components and Components Location

Kia Optima Hybrid (TF HEV) 2016-2020 Service Manual / Body Electrical System / Fuses And Relays / Components and Components Location

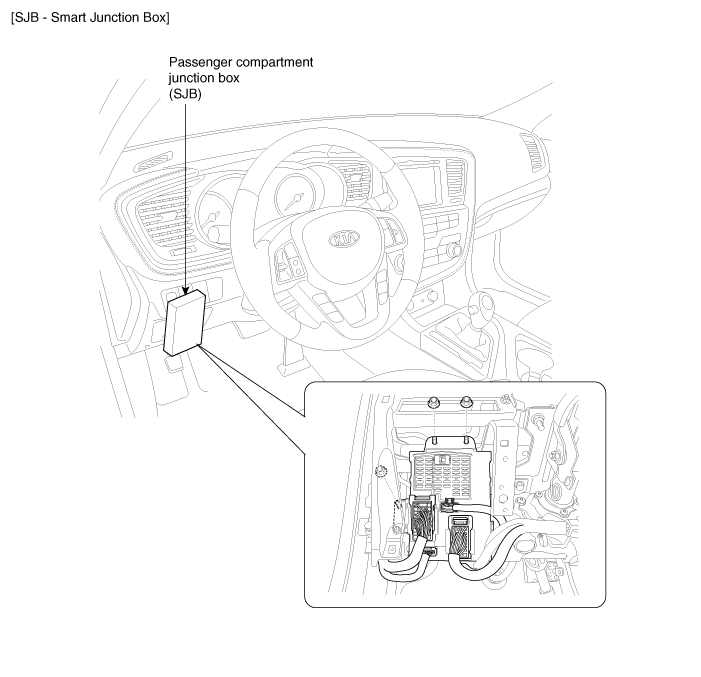

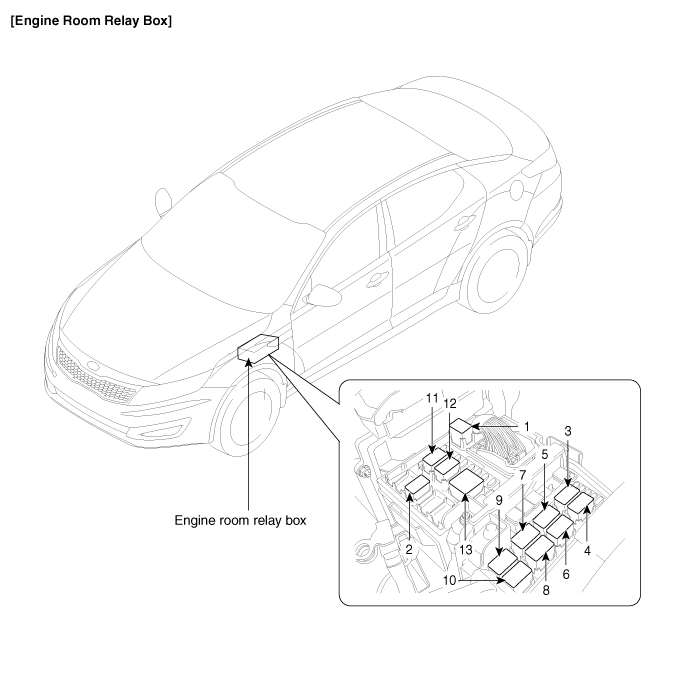

Component Location

1. Rear defogger relay
2. EWP relay
3. Deicer relay
4. ACC realy
5. IG1 relay

6. IG2 relay
7. Wiper relay
8. Rain sensor relay
9. Burglar alarm horn relay

10. Blower relay
11. Fuel pump relay
12. Horn relay
13. Egnine control relay
