Kia Optima Hybrid: Automatic Transaxle Control System / Line Pressure Control Solenoid Vale Schematic Diagrams

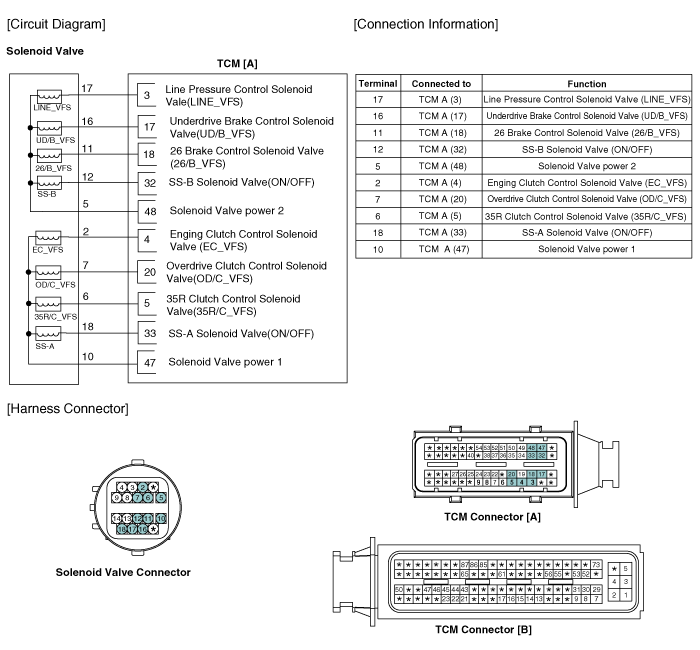

Circuit Diagram

Line Pressure Control Solenoid Vale Specifications

Specifications Direct control VFS[LINE Pressure] Control type : Normal high type Control Pressure kpa(kgf/cm?, psi)500.14 ~ 9.81(5.1 ~ 0.1, 72.54 ~ 1.42)Current value (mA)50 ~ 850 Internal resistance ...

Line Pressure Control Solenoid Vale Repair procedures

Inspection 1. Turn ignition switch OFF. 2. Remove the air duct (A). Tightening torque: 7.8 ~ 9.8 N.m (0.8 ~ 1.0 kgf.m, 5.8 ~ 7.2 lb-ft) 3. Remove the air cleaner assembly. (1) Disconnect the breather hose ...
