Kia Optima Hybrid: AHB(Active Hydraulic Boost) System / Front Disc Brake Components and Components Location

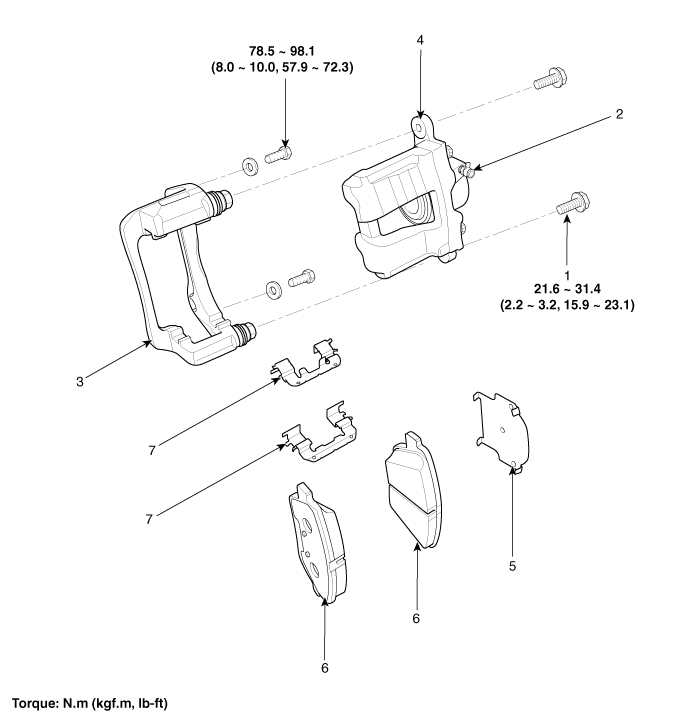

Components

1. Guide rod bolt
2. Bleed screw
3. Caliper carrier
4. Caliper body
5. Inner pad shim
6. Brake pad
7. Pad retainer

Brake Pedal Repair procedures

Removal 1. Turn ignition switch OFF and disconnect the negative (-) battery cable. 2. Remove the crash pad lower panel and reinforcing panel. (Refer to the Body group - crash pad) 3. Remove the shower ...

Front Disc Brake Repair procedures

Removal 1. Remove the front wheel & tire. Tightening torque: 88.3 ~ 107.9 N.m (9.0 ~ 11.0 kgf.m, 65.1 ~ 79.6 lb-ft) 2. Loosen the hose eyebolt (C) and caliper mounting bolts (B), then remove the front ...
