Kia Optima Hybrid: Automatic Transaxle Control System / Description and Operation

Kia Optima Hybrid (TF HEV) 2016-2020 Service Manual / Automatic Transaxle System / Automatic Transaxle Control System / Description and Operation

Description

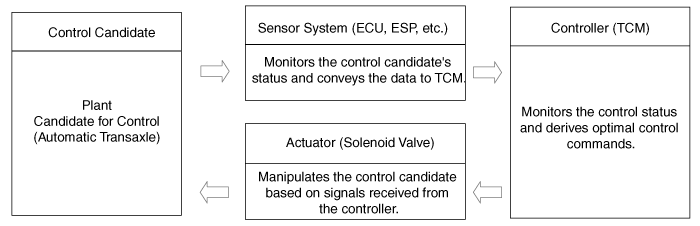

Automatic transaxle system relies on various measurement data to determine the current control status and extrapolate the necessary compensation values. These values are used to control the actuators and achieve the desired control output.

If a problem with the drivetrain, including the transaxle, has been identified, perform self-diagnosis and basic transaxle inspection (oil and fluid inspection) and then check the control system''s components using the diagnosis tool.

Control System Composition

Automatic Transaxle Control System

...

Repair procedures

Adjustment TCM Learning When shift shock is occurred or parts related with the transaxle are replaced, TCM learning should be performed. In the following case, TCM learning is required. • Transaxle assembly ...
