Kia Optima Hybrid: Keyless Entry And Burglar Alarm / Components and Components Location

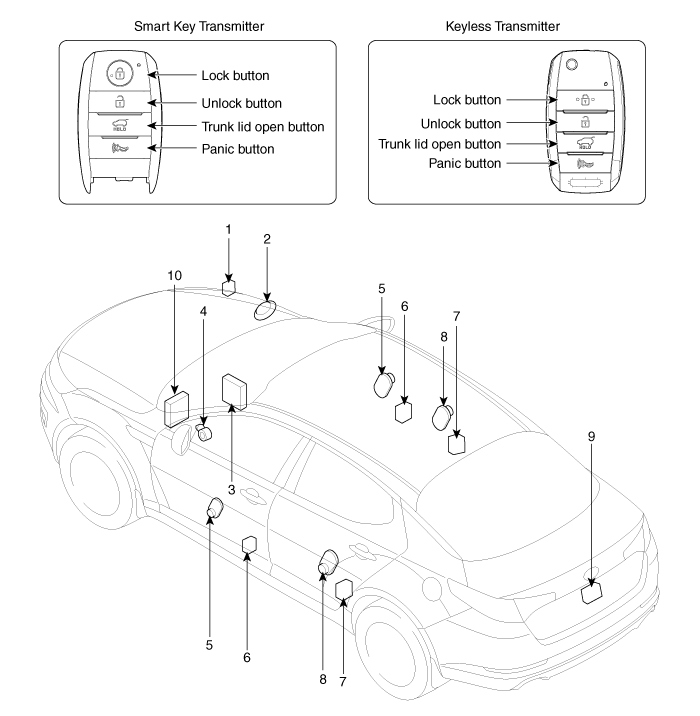

Component Location

1. Hood switch
2. Burglar horn
3. BCM and RF antenna
4. Key warning switch
5. Front door switch
6. Front door lock actuator & switch
7. Rear door lock actuator & switch
8. Rear door switch
9. Trunk lid open switch

Specifications

Specification ItemDescriptionPower source3VOperating temperature-20°C ~ +60°CRF ModulationFSKLF ModulationASKRF frequency315MHzBatteryCR2032Transmissible distance10m or moreLife of battery2years or more(at ...

Description and Operation

Description Burglar Alarm State [B/A State] B/A StateDescriptionDISARM 1) In "DISARM" state, no vehicle start inhibition. So, when door, hood, or Tailgate is opened, there is no alarm sound and flashing. ...
