Kia Optima Hybrid: Engine Control System / Components and Components Location

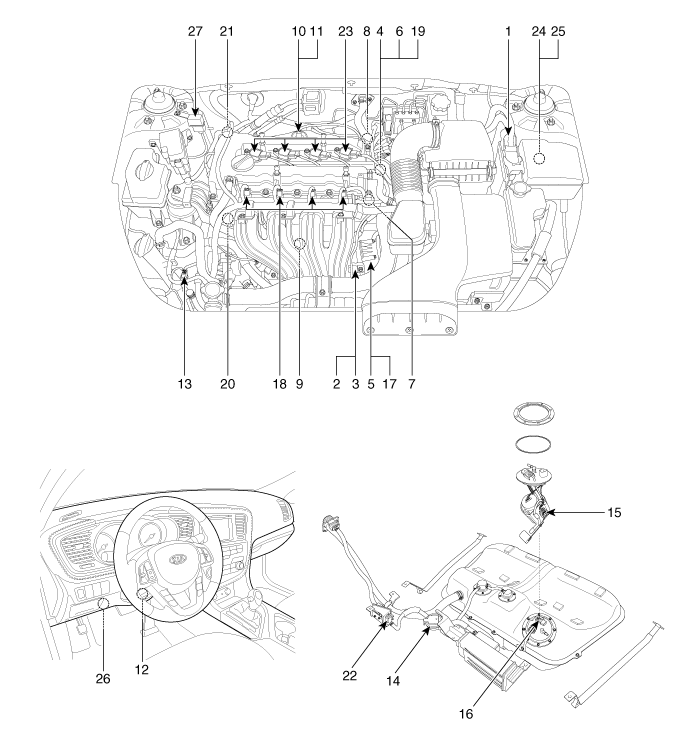

| Components Location |
| 1. ECM (Engine Control Module) 2. Manifold Absolute Pressure Sensor (MAPS) 3. Intake Air Temperature Sensor (IATS) 4. Engine Coolant Temperature Sensor (ECTS) 5. Throttle Position Sensor (TPS) [integrated into ETC Module] 6. Crankshaft Position Sensor (CKPS) 7. Camshaft Position Sensor (CMPS) [Bank 1 / Intake] 8. Camshaft Position Sensor (CMPS) [Bank 1 / Exhaust] 9. Knock Sensor (KS) 10. Heated Oxygen Sensor (HO2S) [Bank 1 / Sensor 1] 11. Heated Oxygen Sensor (HO2S) [Bank 1 / Sensor 2] 12. Accelerator Position Sensor (APS) 13. A/C Pressure Transducer (APT) | 14. Natural Vacuum Leakage Detection (NVLD) 15. Fuel Level Sender (FLS) 16. Fuel Tank Pressure Sensor (FTPS) 17. ETC Motor [integrated into ETC Module] 18. Injector 19. Purge Control Solenoid Valve (PCSV) 20. CVVT Oil Control Valve (OCV) [Bank 1 / Intake] 21. CVVT Oil Control Valve (OCV) [Bank 1 / Exhaust] 22. Canister Close Valve (CCV) 23. Ignition Coil 24. Main Relay 25. Fuel Pump Relay 26. Data Link Connector (DLC) [16 Pin] 27. Multi-Purpose Check Connector [20 Pin] |
| 1. ECM (Engine Control Module) | 2. Manifold Absolute Pressure Sensor (MAPS) 3. Intake Air Temperature Sensor (IATS) |
|
|
| 4. Engine Coolant Temperature Sensor (ECTS) | 5. Throttle Position Sensor (TPS) 17. ETC Motor |
|
|
| 6. Crankshaft Position Sensor (CKPS) | 7. Camshaft Position Sensor (CMPS) [Bank 1 / Intake] |
|
|
| 8. Camshaft Position Sensor (CMPS) [Bank 1 / Exhaust] | 9. Knock Sensor (KS) |
|
|
| 10. Heated Oxygen Sensor (HO2S) [Bank 1/ Sensor 1] | 11. Heated Oxygen Sensor (HO2S) [Bank 1/ Sensor 2] |
|
|
| 12. Accelerator Position Sensor (APS) | 13. A/C Pressure Transducer (APT) |
|
|
| 14. Natural Vacuum Leakage Detection (NVLD) | 15. Fuel Level Sender (FLS) 16. Fuel Tank Pressure Sensor (FTPS) |
|
|
| 18. Injector 23. Ignition Coil | 19. Purge Control Solenoid Valve (PCSV) |
|
|
| 20. CVVT Oil Control Valve (OCV) [Bank 1 / Intake] | 21. CVVT Oil Control Valve (OCV) [Bank 1 / Exhaust] |
|
|
| 22. Canister Close Valve (CCV) | 24. Main Relay 25. Fuel Pump Relay |
|
|
| 26. Data Link Connector (DLC) [16 pin] | 27. Multi-Purpose Check Connector [20 pin] |
|
|
