Kia Optima Hybrid: VESS(Virtual Engine Sound System) / Virtual Engine Sound System Unit Schematic Diagrams

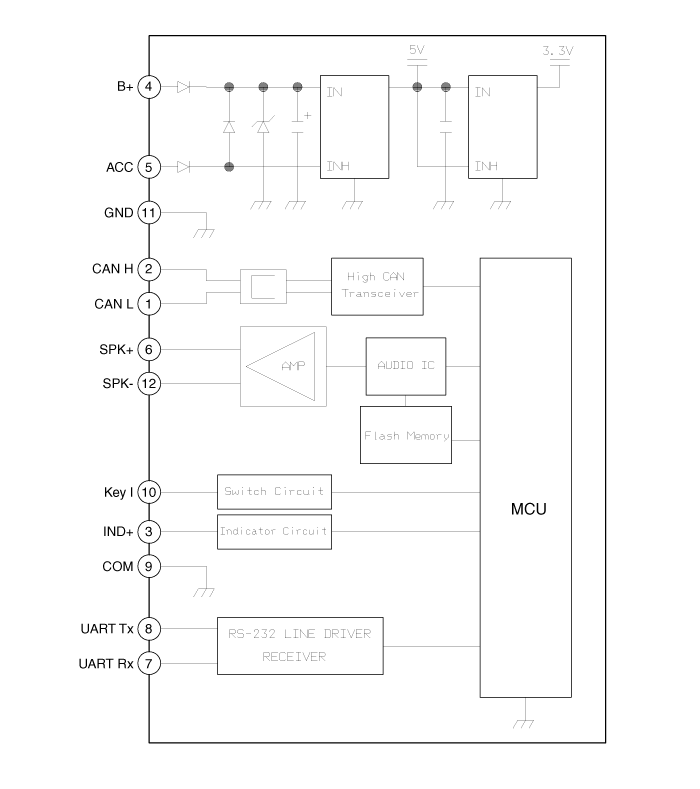

Circuit Diagram

Virtual Engine Sound System Unit Components and Components Location

Component Location ...

Virtual Engine Sound System Unit Repair procedures

Removal 1. Disconnect the negative(-) battery terminal. 2. Remove the glove box housing. (Refer to the BD group - "Crash pad") 3. Remove the VESS unit (A) with bracket after loosening the mounting nuts ...
