Kia Optima Hybrid: Button Engine Start System / Start/Stop Button Components and Components Location

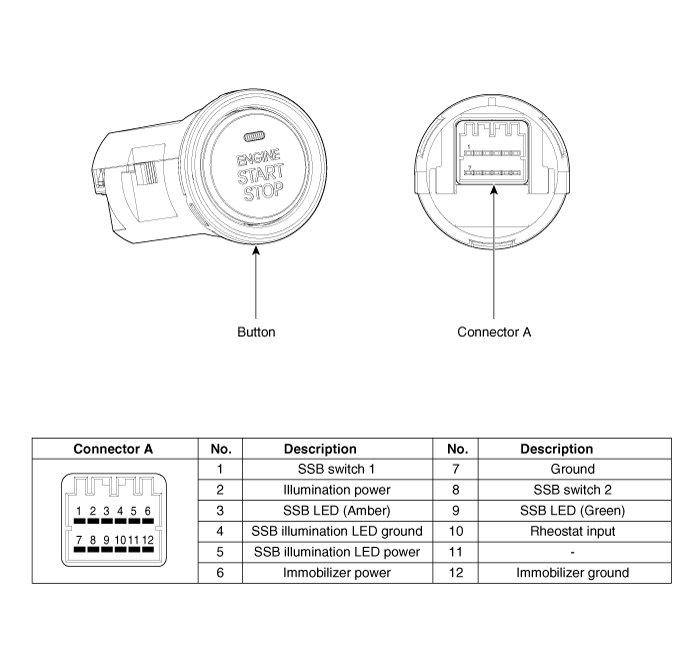

| Component |
Description and Operation
Description System Overview The System offers the following features: – Human machine interface through a 1-stage button, for terminal switching and engine start. – Control of external relays for ACC ...
Start/Stop Button Repair procedures
Removal 1. Disconnect the negative (-) battery terminal. 2. Using a screwdriver or remover, remove the crash pad side cover (A). 3. After loosening the mounting screws, then remove the crash pad lower ...
