Kia Optima Hybrid (TF HEV) 2016-2020 Service Manual / Restraint / SRSCM / Seat Belt Buckle Switch (BS) Components and Components Location

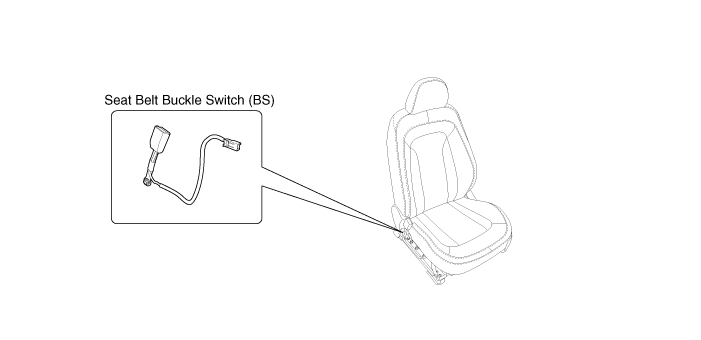

Components

Seat Belt Buckle Switch (BS) Description and Operation

Description The SRSCM shall monitor the status of the driver and front passenger seat belt buckle. The SRSCM provides one pin each for the driver and front passenger seat belt buckle status input. The ...

Seat Belt Buckle Switch (BS) Repair procedures

Removal 1. Disconnect the battery negative cable, and wait for at least three minutes before beginning work. 2. Remove the front seat assembly. (Refer to the Body group- Front seat) 3. Loosen the seat ...
