Diagnosis With GDS |
1. |
BSD system defects can be quickly diagnosed with the GDS. GDS
operates actuator quickly to monitor, input/output value and self
diagnosis. |
2. |
Connect the cable of GDS to the data link connector in driver side crash pad lower panel, turn the power on GDS. |
3. |
Select the vehicle model and then BSD system. |
4. |

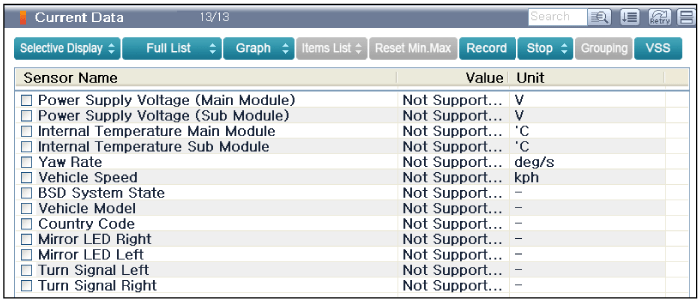

Select "Current Data", if you want to check current data of BSD system. |
5. |

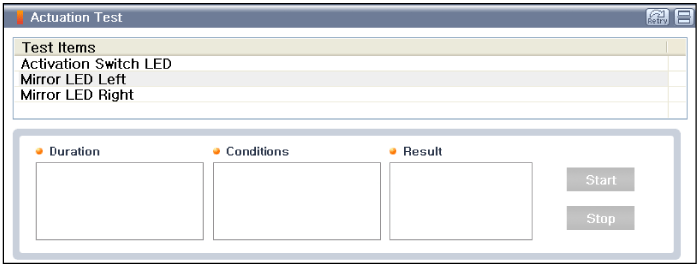

If you want to check each module operation forcefully, select "Actuation test". |
