Kia Optima Hybrid: Air Conditioning System / Description and Operation

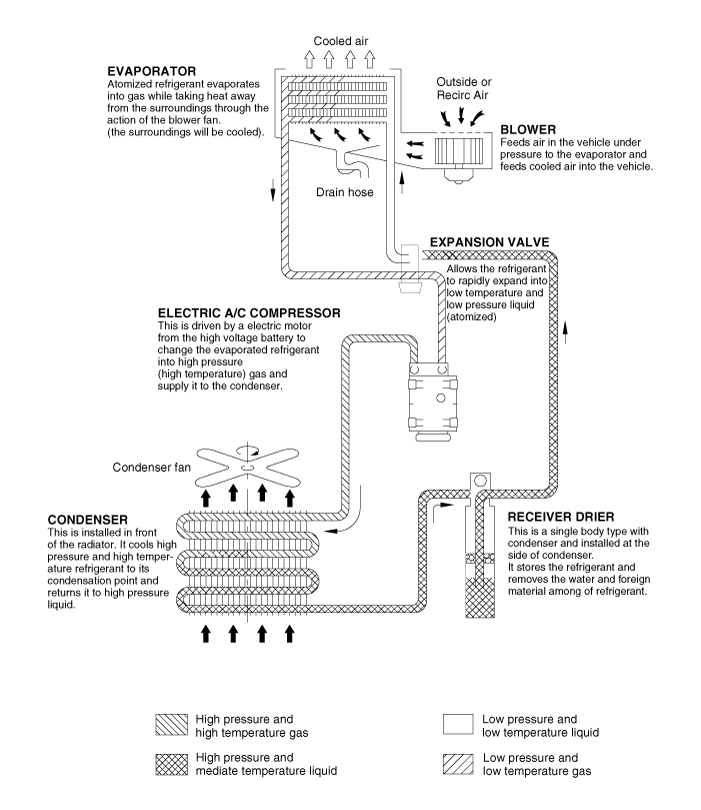

| Refrigeration Cycle |
General Safety Information and Caution
Instructions When Handling Refrigerant 1. R-134a liquid refrigerant is highly volatile. A drop on the skin of your hand could result in localized frostbite. When handling the refrigerant, be sure to wear ...
Repair procedures
Refrigerant System Service Basics • Since the electric compressor uses high-voltage, you should use PVE or POE oil which have high Volumetric Resistivity. • Do not use the same A/C recovery / charging ...
Other information:
Kia Optima Hybrid (TF HEV) 2016-2020 Service Manual: Fuel Tank Pressure Sensor (FTPS) Repair procedures
Inspection 1. Connect the GDS on the Data Link Connector (DLC). 2. Measure the output voltage of the FTPS. Pressure [kPa (kgf/cm?, in H2O)Output Voltage (V)-6.67 (-0.068, -26.8)0.502.5+6.67 (0.068, 26.8)4.5 Removal 1. Turn the ignition switch OFF and disconnect the battery negative (-) terminal. 2. Lift ...
Kia Optima Hybrid (TF HEV) 2016-2020 Service Manual: Specifications
Specifications ItemSpecificationsTransmission typeA6MF2HEngine modelGasoline 2.4Torsion damperDMF Type long travelTorsion damper sizeO 281.4 mm (11.0787 in.)Engine clutchMulti disc wet clutchOil pump systemParachoidFriction elementsClutch: 2EABrake: 3EAOWC : 1EAPlanetary gear 3EAGear ratio1st4.2122nd2.6373rd1.8004th1.3865th1.0006th0.772Reverse3.385Final ...
