Kia Optima Hybrid: MTS System / Description and Operation

Kia Optima Hybrid (TF HEV) 2016-2020 Service Manual / Body Electrical System / MTS System / Description and Operation

Description
The Vehicle Information System is a Telematics service that ensures comfortable and enjoyable driving by providing safety, security, and vehicle diagnostic information, with the option of using your smartphone.

The term "Telematics" is a combination of telecommunication and informatics. The Telematics system uses an assortment of communication devices mounted on the vehicle to analyze various vehicle and driving conditions and keep driving safe and convenient.
Main Features
–
The Telematics system''s goals are safety, diagnostics, vehicle management, and driving support.
–

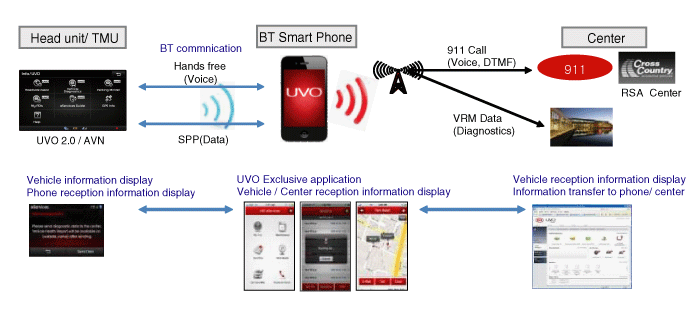

eServices via smartphone apps
–
Features bi-directional communication between UVO2.0/AVN devices and smartphones, and between smartphones and the call center. An audio/AVN head unit is provided and the system supports both smartphone-links and independent operation.

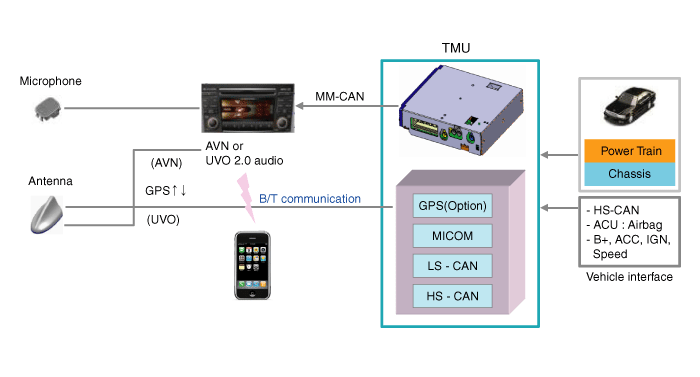

Block Diagram

? SPP (Serial Port Protocol) : Protocol for the smartphone and data
Vehicle Components

Service Lists
No.
Service Name
Description
1
Crash Notification Assist
The emergency call service automatically contacts the local emergency call center when the airbag is deployed.
2
Roadside Assist
The emergency dispatch service automatically contacts the KMA customer center when towing and/or fuel is needed.
3
Automatic Diagnostics
The system can automatically detect failures in PT controllers and provide tips on troubleshooting.
4
Vehicle Diagnostics
The user can perform vehicle diagnostics at any time.
5
Scheduled Diagnostics
The system informs the user of regular inspection dates and sends the inspection results to the service center.
6
eServices Guide
An automatic voice guide system provides information on various Telematics functions to the user.
7
My POIs
Send target destination information from your smartphone to the system. Your target destinations are saved at www.myuvo.com.
8
Parking Minder
Use your smartphone to find where you parked.
9
MyUVO
Use your smartphone to check your driving patterns, vehicle diagnostic results, diagnostic history, and part replacement history on the mobile website.
10
Maintenance
Use your smartphone to manage your mileage-based part replacement schedule.

TMU Dealer Engineering Mode
1.
Function
–
TMU Update : Update TMU unit using update file.
–
TMU Factory Default : Clear TMU unit setting and TMU relative information.
; Registered phone info, Acitvation status, Reset password, 911 Setting default (default is "OFF"), Alert history, My POI list, Service data, Diagnostic data, Driving information
–
TMU Version Information : Check TMU version.
2.
Access Dealer Engineering Mode in Head Unit (Hidden Menu) (in the order as below)
(1)
Audio type
a.
Press SETUP key.

b.
Click the audio screen in order.
; Click position one time > Click position one time > Click postion 5 times


IF you click other position, you should go another screen and then try again.
c.
Enter Dealer Eng Mode and check TMU veresion.

d.
Press "TMU Update" or "Factory Defaults" button on head unit.


•
TMU bin file should be in USB ROOT. (file name : KMA_TMU_install.inf)
(TMU bin file name should not be changed.)
•
TMU Update may take about 15 minutes.

•
Don''t touch anthing during TMU Update.
•
If fail to update, please update again.
(2)
AVN type
a.
Press Info/SETUP() key.

b.
Press Info/UVO key.

c.
Touch the AVN screen in order.
; Click position one time > Click position one time
> Click position one time > Click position one time
> Click position one time > Click position one time


IF you click other position, you should go another screen and then try again.
d.
Enter Dealer Eng Mode and check TMU veresion.

e.
Press "TMU Update" or "Factory Defaults" button on head unit.


•
TMU bin file should be in USB ROOT.
•
TMU Update may take about 15 minutes.

•
Don''t touch anthing during TMU Update.
•
If fail to update, please update again.
Components and Components Location

Components 1. Telematics unit (TMU)2. Roof Antenna (GPS)3. Multimedia jack4. AVN head unit5. Mic (Built in OHC) ...

Telemetics Unit (TMU) Components and Components Location

Component Connector Pin Specification No.Pin NameTypeFromToDescription (Wiring Spec.)1GNDDC GroundTMUBatteryConnected to battery ground2GNDDC GroundTMUBatteryConnected to battery ground3-----4-----5-----6-----7-----8-----9-----10-----11-----12HS ...
