Kia Optima Hybrid: Cylinder Head Assembly / CVVT & Camshaft Components and Components Location

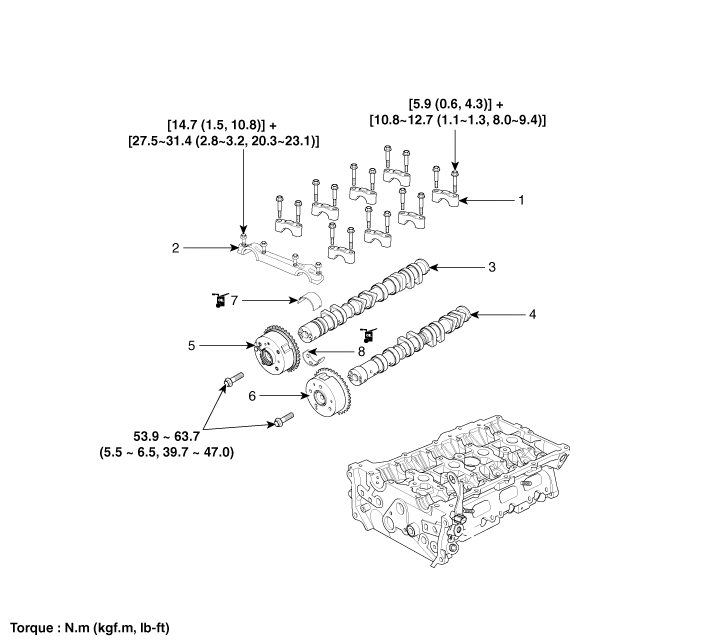

Components

1. Camshaft bearing cap
2. Camshaft front bearing cap
3. Exhaust camshaft
4. Intake camshaft
5. Exhaust CVVT assembly
6. Intake CVVT assembly
7. Exhaust camshaft upper bearing
8. Intake camshaft lower bearing
