Kia Optima Hybrid: Blind Spot Detection System / Components and Components Location

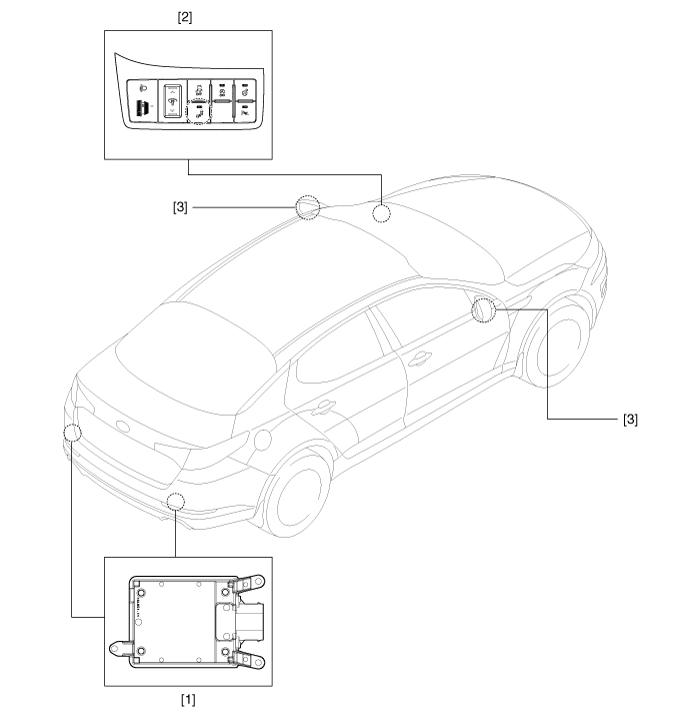

Components

1. BSD unit (RH : Master/ LH : Slave)
2. BSD switch
3. BSD warning lamp (Built in the outside mirror)

Specifications

Specifications ItemsSpecificationRated voltageDC 12VOperating voltage9V ~ 16VOperating speed30?/h ~ 250?/hSensible distance70m (Sedan)Curvature radiusStart : More than 100mStop : Less than 70mFrequency24.125 ...

Description and Operation

Description The BSD (Blind Spot Detection) system uses a radar sensor to alert the driver while driving. It senses the rear side territory of the vehicle and provides information to the driver. – BSD ...
