Kia Optima Hybrid (TF HEV) 2016-2020 Service Manual / Body Electrical System / Panoramaroof / Components and Components Location

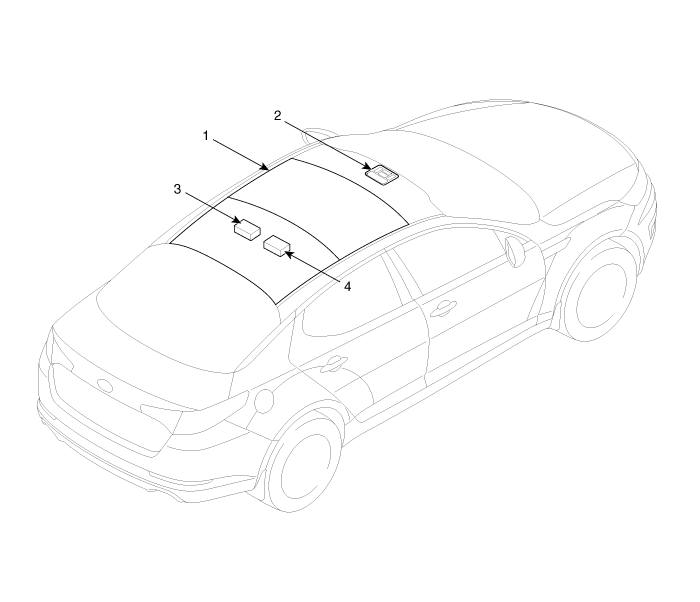

Component Location

1. Panoramaroof
2. Panoramaroof switch

3. Roller blind motor & slave controller
4. Panoramaroof motor & controller

Schematic Diagrams

Circuit Diagram (1) Circuit Diagram (2) ...
