Kia Optima Hybrid: AVN System / Components and Components Location

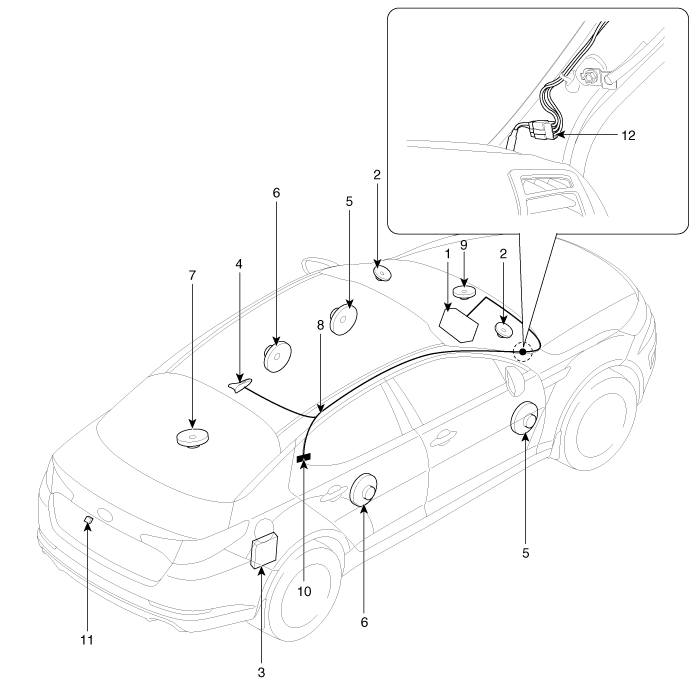

Components Location

1. AVN (A/V & Navigation head unit)
2. Midrange speaker
3. External amplifier
4. Roof antenna (GPS + SDARS)
5. Front door speaker
6. Rear speaker
7. Woofer speaker
8. Antenna feeder cable
9. Center speaker
10. Glass antenna (Radio)
11. Back view camera
12. Feeder cable joint connector

? SDARS : Satellite Digital Audio Radio Service
Specifications

Specifications AVN head unit ItemSpecificationPower sourceDC 14.4V (-) groundFrequency range / Channel spaceFM : 87.5 ~ 107.9 MHz / 200 KHzAM : 530 ~ 1710 KHz / 10 KHzTuning typePLL SYNTHESIZED TUNINGImpedance2 ...

Schematic Diagrams

System Block Diagram ...
