Kia Optima Hybrid: Electric Power Steering / Components and Components Location

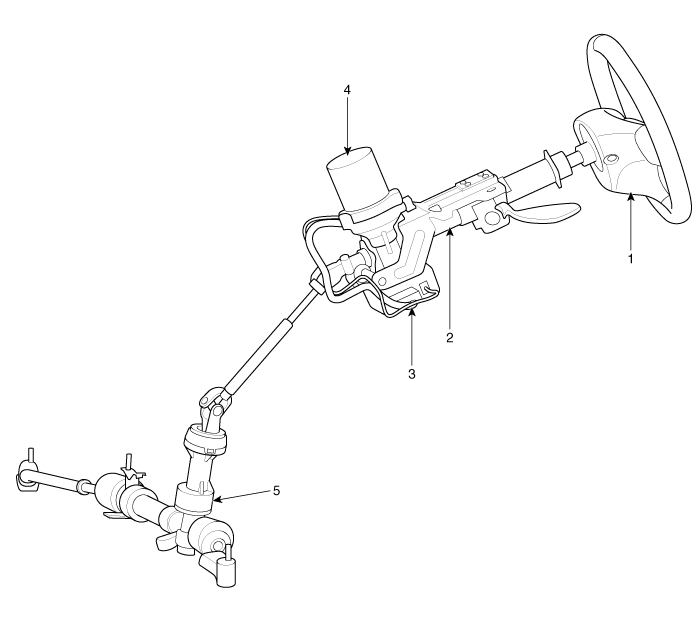

| Components |
| 1. Steering wheel 2. Steering column 3. ECU | 4. Motor 5. Steering gear box |

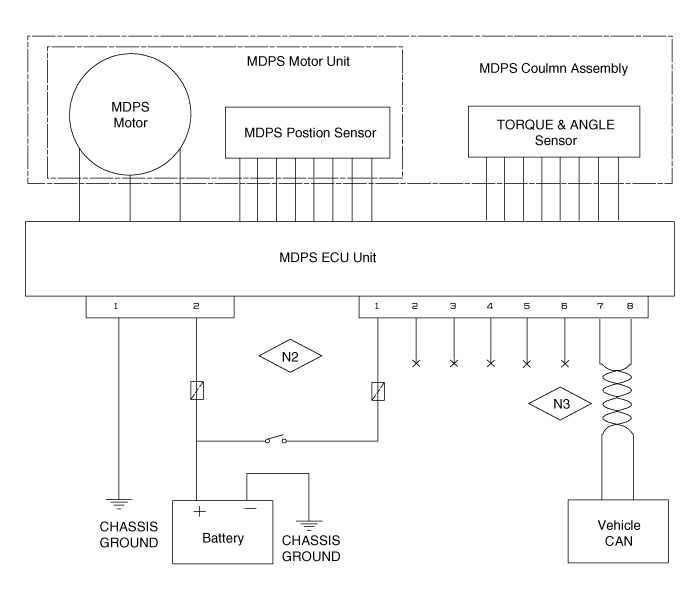

| MDPS Circuit Diagram |

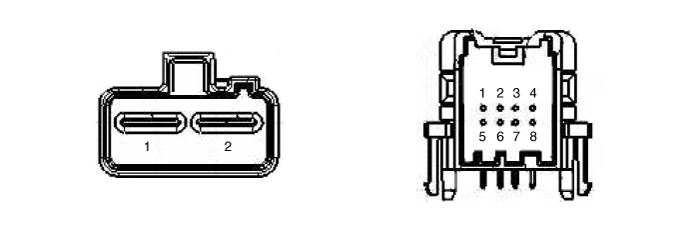

| Harness Connector |
| Type | Pin No | Description |
| Battery | 1 | Battery - |
| 2 | Battery + | |
| Vehicle | 1 | IGN |
| 2 | - | |
| 3 | - | |
| 4 | - | |
| 5 | - | |
| 6 | - | |
| 7 | High_CAN | |
| 8 | Low_CAN |
Description and Operation
Description EPS (Electric power steering, Column assist type) system uses an electric motor to assist the steering force and it is an engine operation independent steering system. EPS control module controls ...
Steering Column and Shaft Repair procedures
Replacement 1. Disconnect the battery negative cable from the battery and then wait for at least 30 seconds. 2. Turn the steering wheel so that the front wheels can face straight ahead. 3. Push the pin ...
