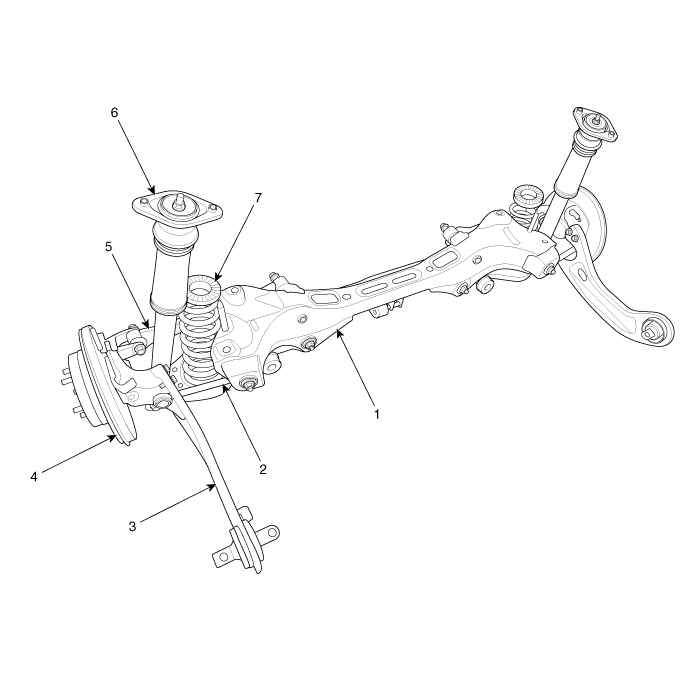

Components Location |
1. Sub frame 2. Assist arm 3. Trailing arm 4. Rear disc | 5. Rear upper arm 6. Rear shock absorber 7. Coil spring |
Components 1. Self locking nut2. Bracket assembly3. Bumper rubber4. Dust cover5. Shock absorber ...
Removal 1. Remove the negative (-) battery terminal. 2. Remove the driver seat in the car. (Refer to the BD group - "Front seat") 3. Remove the IMS module (A) after loosening 3 screws in the bottom of seat. 4. Disconnect the IMS module connector (A). Installation 1. Install the IMS module after reconnecting ...
Inspection with GDS Initialization and diagnosis sequence by using GDS equipment. Below content summarize the procedure for A/S using GDS. No.Procedure1Locate vehicle to flat plane2Tire check3IGN1 ON4Head lamp Low Beam ON5Connection with diagnostic tool6Initial command by diagnostic tool7Clear DTC Code8IGN1 ...
