Components |

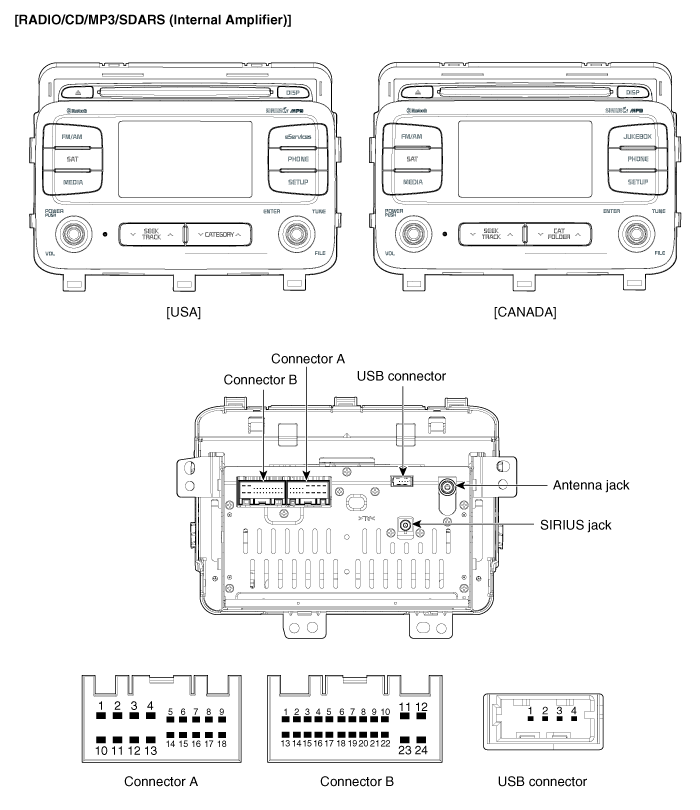

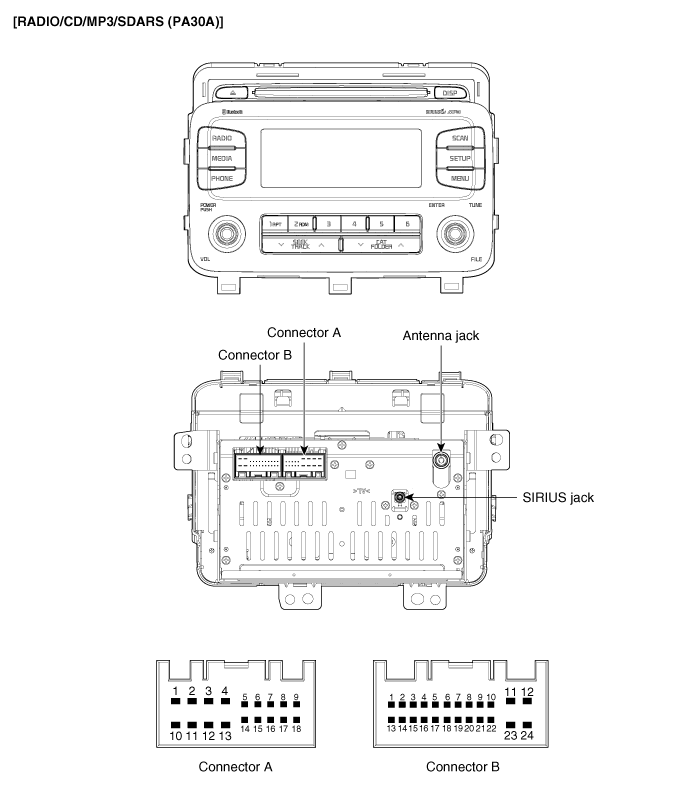

Pin No. | Connector A (18pin) | Connector B (24pin) |
1 | Rear left speaker (+) | - |
2 | Front left speaker (+) | - |
3 | Front right speaker (+) | - |
4 | Rear right speaker (+) | Steering remocon |
5 | - | - |
6 | - | USB D (+) |
7 | - | USB/iPod VDD |
8 | Illumination (+) | AUX right input |
9 | Detent | AUX ground |
10 | Rear left speaker (-) | MIC (+) (Bluetooth) |
11 | Front left speaker (-) | ACC |
12 | Front right speaker (-) | Battery (+) |
13 | Rear right speaker (-) | - |
14 | - | - |
15 | - | - |
16 | - | Speed |
17 | Illumination (-) | Remote ground |
18 | Remote antenna | USB D (-) |
19 | ? | iPod/USB ground |
20 | AUX Detect | |
21 | AUX left input | |
22 | MIC - (Bluetooth) | |
23 | - | |
24 | Power ground |
Pin No. | Connector A (18pin) | Connector B (24pin) | USB connector (4pin) |
1 | Rear left speaker (+) | CAN high | USB/iPod ground |
2 | Front left speaker (+) | - (TMu audio(+)) | USB D (-)/iPod Rx |
3 | Front right speaker (+) | - (Temp.) | USB D (+)/iPod Tx |
4 | Rear right speaker (+) | Steering wheel remocon | USB/iPod 5V |
5 | - | - | - |
6 | - | Camera video input | |
7 | - | Camera battery(+) | |
8 | Illumination (+) | AUX right input | |
9 | - | AUX ground | |
10 | Rear left speaker (-) | MIC (+) (Bluetooth) | |
11 | Front left speaker (-) | ACC | |
12 | Front right speaker (-) | Battery (+) | |
13 | Rear right speaker (-) | CAN low | |
14 | - | -(TMu audio(-)) | |
15 | - | AV tail | |
16 | Door unlock | Speed | |
17 | Illumination (-) | Remocon ground | |
18 | Remote antenna | Camera video ground | |
19 | ? | Camera Req. | |
20 | AUX Detect | ||
21 | AUX left input | ||
22 | MIC - (Bluetooth) | ||
23 | Camera power ground | ||
24 | Power ground |

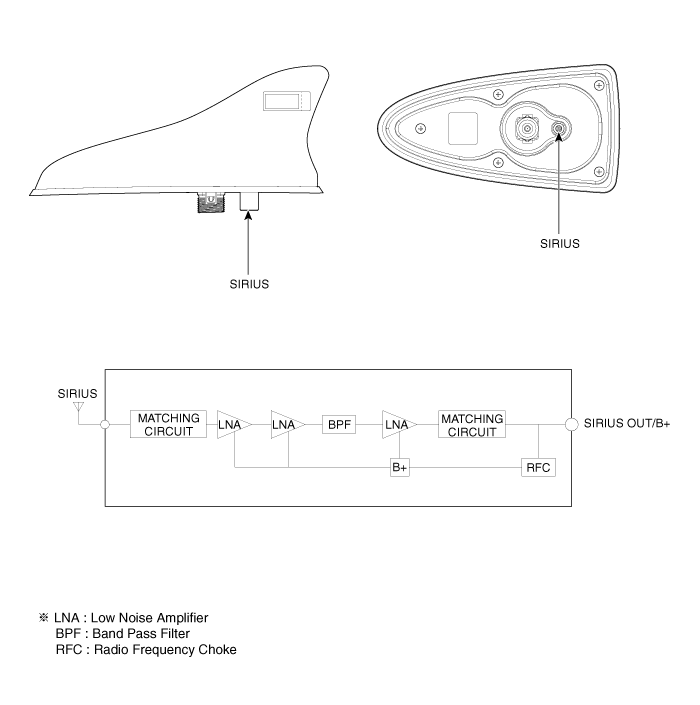

Component Location 1. Audio unit2. Midrange speaker3. Glass antenna (AM/FM)4. Front door speaker5. Rear door speaker6. Antenna feeder cable7. Feeder cable joint connector8. Multimedia jack9. Roof antenna ...
Removal • Take care not to scratch the center fascia panel and related parts. • Eject all the disc before removing the audio unit to prevent damaging the CD player''s load mechanism. ...
