Kia Optima Hybrid: Seat Electrical / Air Ventilation Seat Schematic Diagrams

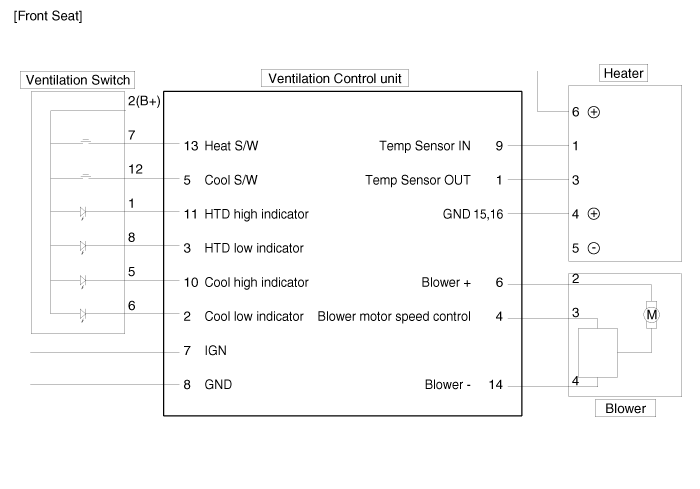

Circuit Diagram

Air Ventilation Seat Components and Components Location

Components (1) 1. Ventilation blower2. Ventilation ECU3. Ventilation seat switch Components (2) Components (3) ...

Air Ventilation Seat Description and Operation

Description Using the blows power of FAN on seat, remove the moisture, sweat and warmth from occupants and surface of seats. It inhales the indoor air through the blower installed at the seat cushion lower ...
